HomepaginaSingle inflatable packer TPE 82 S for borehole Ø 82-158 mm

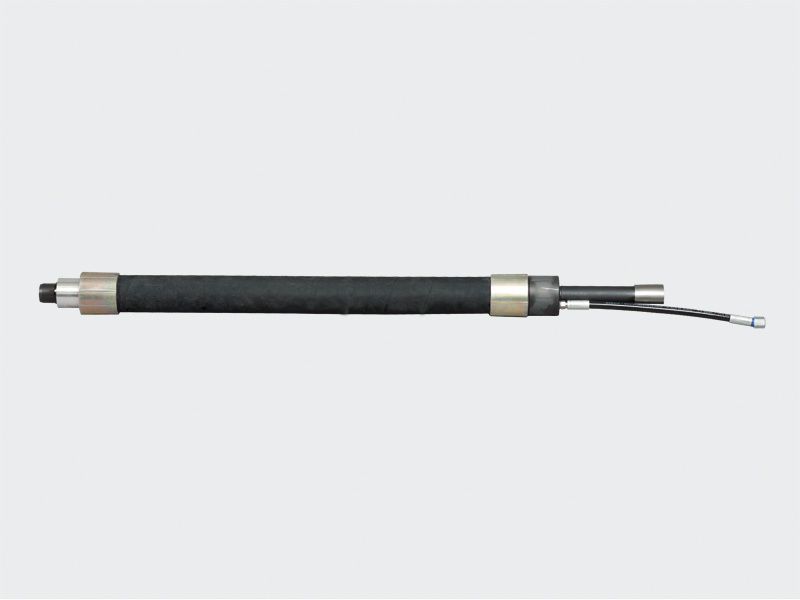

Single inflatable packer TPE 82 S
for borehole Ø 82-158 mm

Video - DESOI Einfach-Blähpacker

1.000 mm inflation hose length, inside Ø 30 mm, connection thread for material hose inside G1", connection thread for expansion line inside M10x1, eyelet for securing cord
Voordeel/aanwijzing
  • Reusable
  • Material-conducting parts of stainless steel or with hardened sealing surface
  • Easy and safe sealing of boreholes
  • Can be used in different depths
  • All parts are easily exchangeable
Invoermateriaal
  • acrylate gel
  • micro cement
  • 1C injection resin
  • silicate resin
  • polyurethane
  • aqueous solution
  • 2C injection resin
  • injection mortar
  • cement paste
  • cement suspension
  • insulating material
  • water
  • 2C polyurethane
Technische gegevens
Type TPE 82 S
Borehole Ø min.-max. 82-158 mm
Borehole Ø 86 mm max. expansion pressure 145 bar, max. injection pressure 130 bar
Borehole Ø 100 mm max. expansion pressure 115 bar, max. injection pressure 100 bar
Borehole Ø 120 mm max. expansion pressure 75 bar, max. injection pressure 55 bar
Borehole Ø 135 mm max. expansion pressure 60 bar, max. injection pressure 40 bar
Borehole Ø 139 mm max. expansion pressure 50 bar, max. injection pressure 30 bar
Borehole Ø 145 mm max. expansion pressure 45 bar, max. injection pressure 25 bar
Borehole Ø 155 mm max. expansion pressure 40 bar, max. injection pressure 20 bar
Inflation hose length 950 mm
Free passage Ø 30 mm
Connection thread for material hose inside G1"
Connection thread for expansion line inside M10x1
Weight 12.20 kg
Total length 1.380 mm
Securing cord eye
