HomepaginaSingle inflatable packer TPE 34 S for borehole Ø 34-51 mm

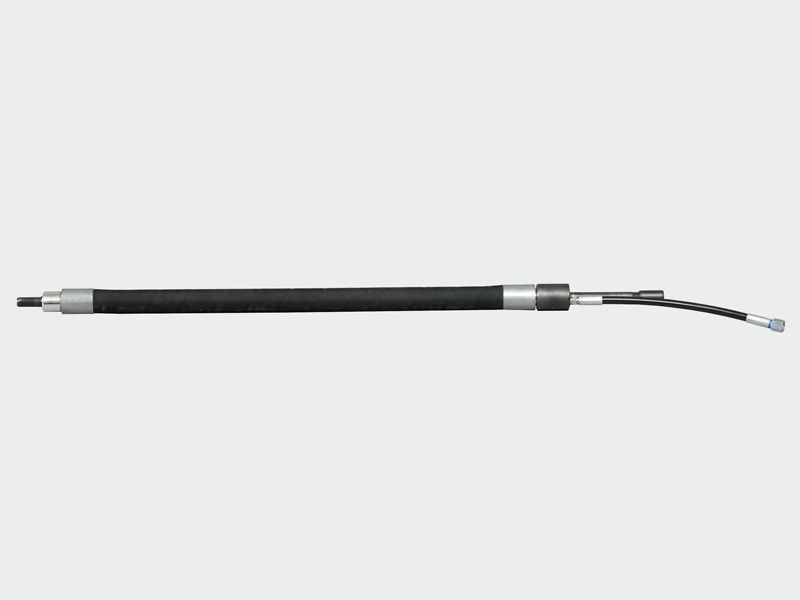

Single inflatable packer TPE 34 S
for borehole Ø 34-51 mm

Video - DESOI Einfach-Blähpacker

500 mm inflation hose length, inside Ø 8 mm, connection thread for material hose inside G1/4", connection thread for expansion line inside M8x1, connection thread for securing cord inside M8
Voordeel/aanwijzing
  • Reusable
  • Material-conducting parts of stainless steel or with hardened sealing surface
  • Easy and safe sealing of boreholes
  • Can be used in different depths
  • All parts are easily exchangeable
Invoermateriaal
  • acrylate gel
  • micro cement
  • 1C injection resin
  • silicate resin
  • polyurethane
  • aqueous solution
  • 2C injection resin
  • injection mortar
  • cement paste
  • cement suspension
  • insulating material
  • water
  • 2C polyurethane
Technische gegevens
Type TPE 34 S
Borehole Ø min.-max. 34-51 mm
Borehole Ø 35 mm max. expansion pressure 100 bar, max. injection pressure 80 bar
Borehole Ø 40 mm max. expansion pressure 90 bar, max. injection pressure 70 bar
Borehole Ø 44 mm max. expansion pressure 80 bar, max. injection pressure 60 bar
Inflation hose length 500 mm
Free passage Ø 8 mm
Connection thread for material hose inside G1/4"
Connection thread for expansion line inside M8x1
Weight 1 kg
Total length 780 mm
Securing cord internal thread M8
