HomepaginaDESOI PowerInject 303 GO 110V - HP ball valve
15740_DESOI PowerInject 303 GO_M.jpg
15740_DESOI PowerInject 303 GO_M.jpg 15746_15740_DESOI PowerInject 303 GO_Kugelhahn.jpg 15746_15740_DESOI PowerInject 303 GO_Druckeinstellung.jpg 15746_DESOI PowerInject 303 GO_Arbeitsstellung_M.jpg

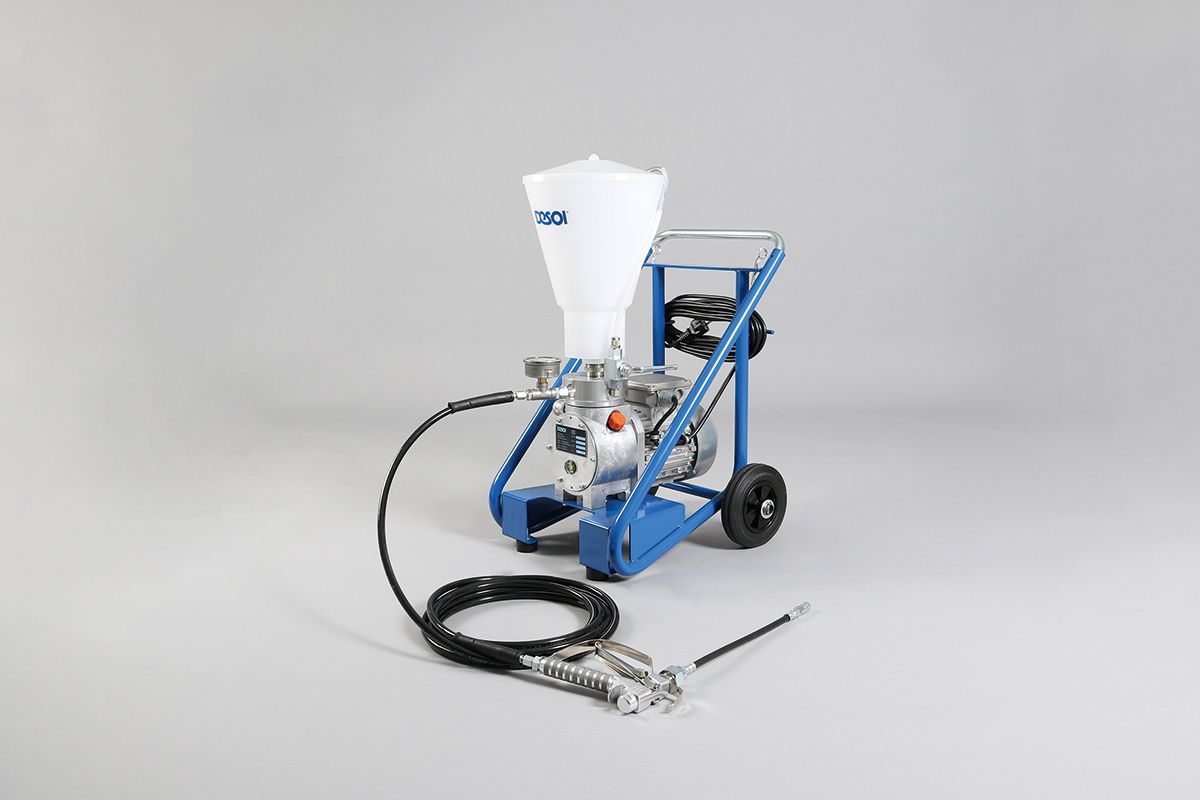

DESOI PowerInject 303 GO 110V - HP ball valve

moving device, manometer 0 - 250 bar, 6 litre material container transparent with scale and cover, incl. instruction manual, No. 16803: HP material hose - steel Ø 6 mm, 5 m, union nuts M12x1.5 (solvent resistant), No. 16806: HP ball valve (external thread M12x1.5, mouth piece)
Voordeel/aanwijzing
  • Exact adjustment of pressure
  • Big membrane area - low wearing
  • Valve technique - also suitable for highly viscous material
  • Can also be used for spraying
  • Big material passages - high delivery
Invoermateriaal
  • epoxy resin
  • polyurethane
  • quick-foaming polyurethane
  • aqueous solution
Technische gegevens
Supply 230 V/50 Hz
Motor power 0.37 kW
Working pressure - infinitely variable 5 - 200 bar
Delivery rate max. 1.9 l/min
Weight 22 kg
L x W x H 58 x 28 x 75 cm
Productbeschrijving
The compact, robust and poweful mebran pump DESOi Powerinject 303 GO 110V is designed for the professional service on site. The special feature of the membrane pump ist the large surface of the membrane and the large dimensions of the suction valve that makes the suction of highly viscous material easier. The pump is equipped with a raturn hose with ball valve which relieves the pressure in the pump and the material hose.
