DESOI AirPower M36

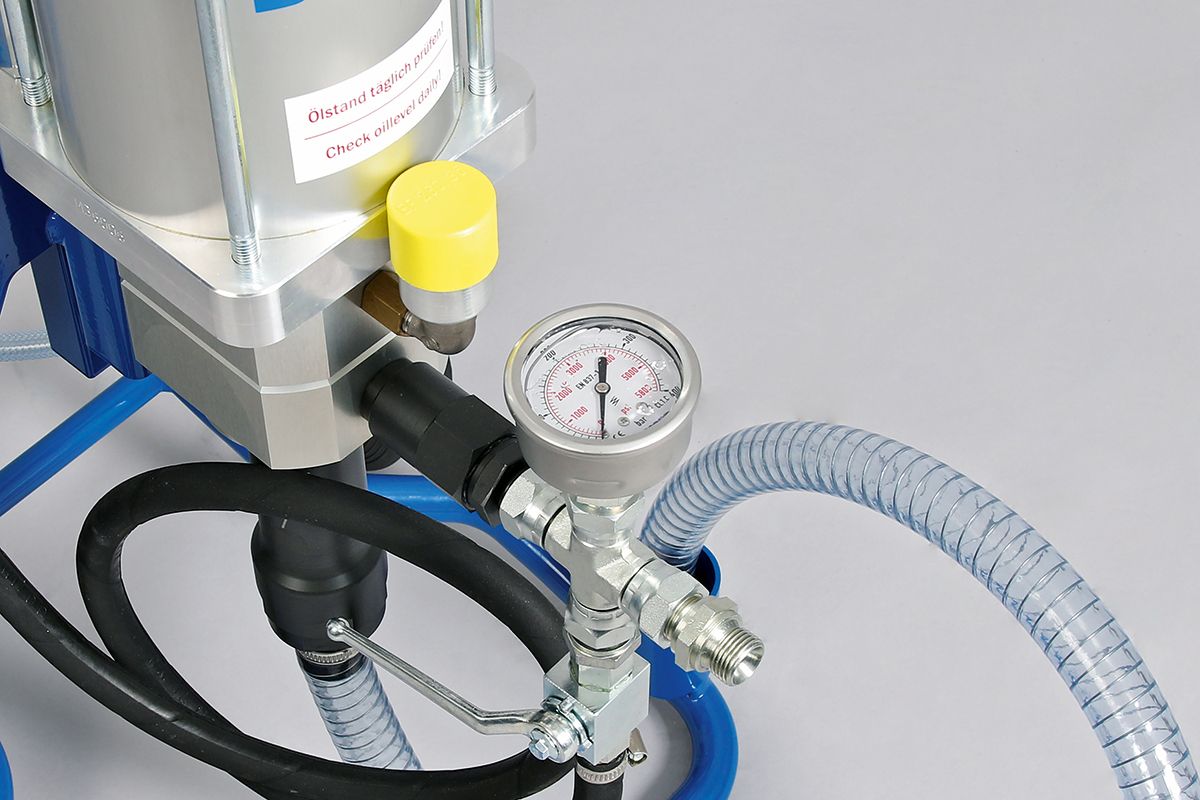

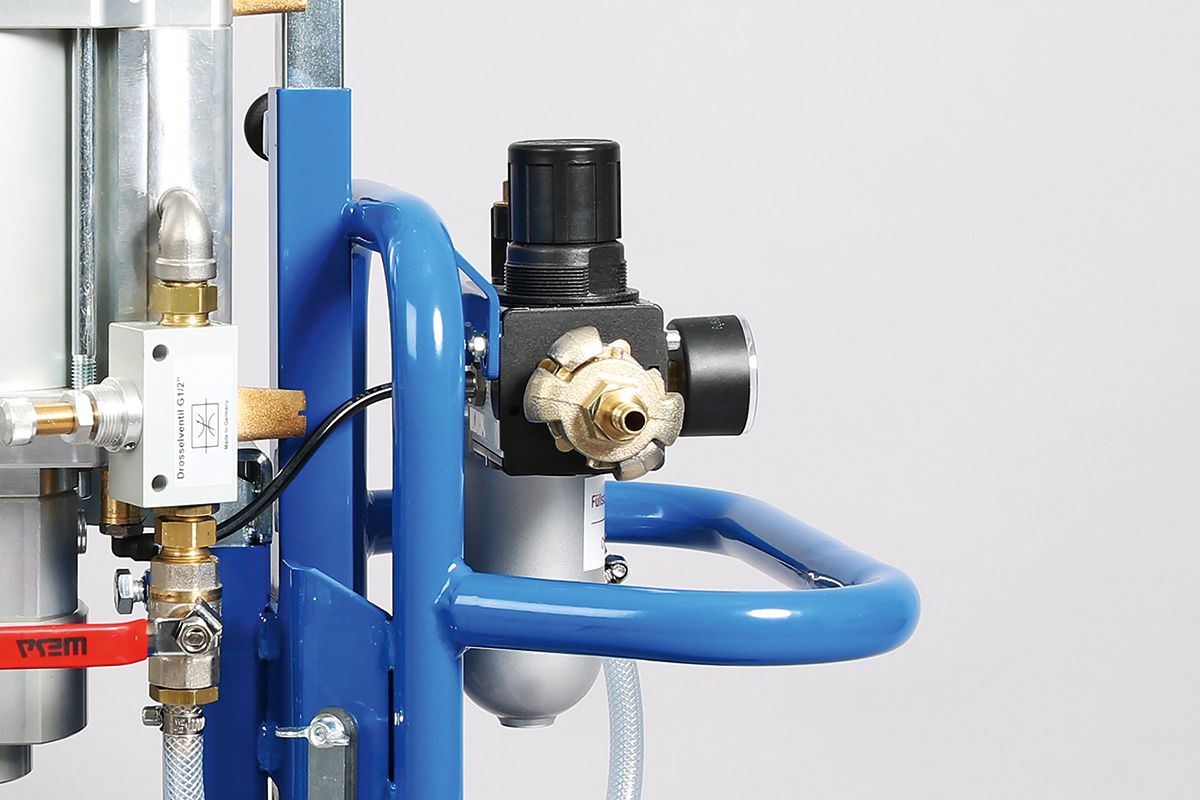

moving device, 1.2 m suction hose Ø 25 mm transparent with suction basket Ø 40 mm, manometer 0 - 400 bar, return hose Ø 13 mm black, material hose connection: G1/2"; anti freeze unit, reducing valve for regulating the delivery rate speed, air connection package: claw coupling 42 mm, air plug NW 7.2, incl. instruction manual
Voordeel/aanwijzing
  • Big material passages - for highly viscous material
  • A tensioning of the piston sealings is not necessary
  • Easy maintenance and repair
Invoermateriaal
  • epoxy resin
  • polyurethane
  • quick-foaming polyurethane
  • aqueous solution
Technische gegevens
Working pressure - infinitely variable 18 - 192 bar
Delivery rate 8.4 l/min
Air consumption 900 l/min
Air pressure max. 8 bar
Transmission ratio 1:24
Air consumption and delivery rate at 100 bar back pressure (injection pressure)
Air consumption 210 l/min Delivery rate 1.0 l/min
Air consumption 325 l/min Delivery rate 1.5 l/min
Air consumption 425 l/min Delivery rate 2.0 l/min
Air consumption 520 l/min Delivery rate 2.5 l/min
Air consumption 610 l/min Delivery rate 3.0 l/min
Weight 37.5 kg
L x W x H 64 x 48 x 84 cm
Productbeschrijving

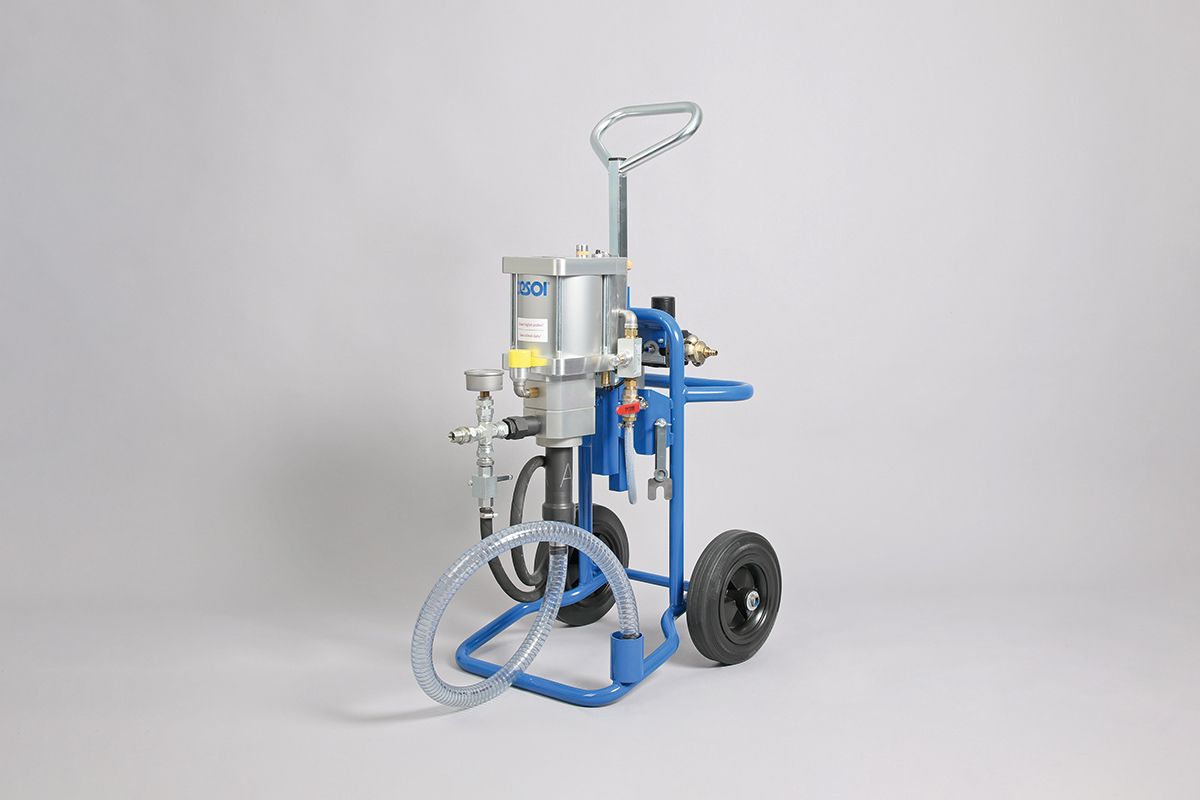

The pneumatic reciprocating pump DESOI AirPower M36 combines high capacity with compact design. Due to the directly mounted seals on the piston, retensioning is not necessary. The result is a very maintenance-friendly machine including suitable accessories.
