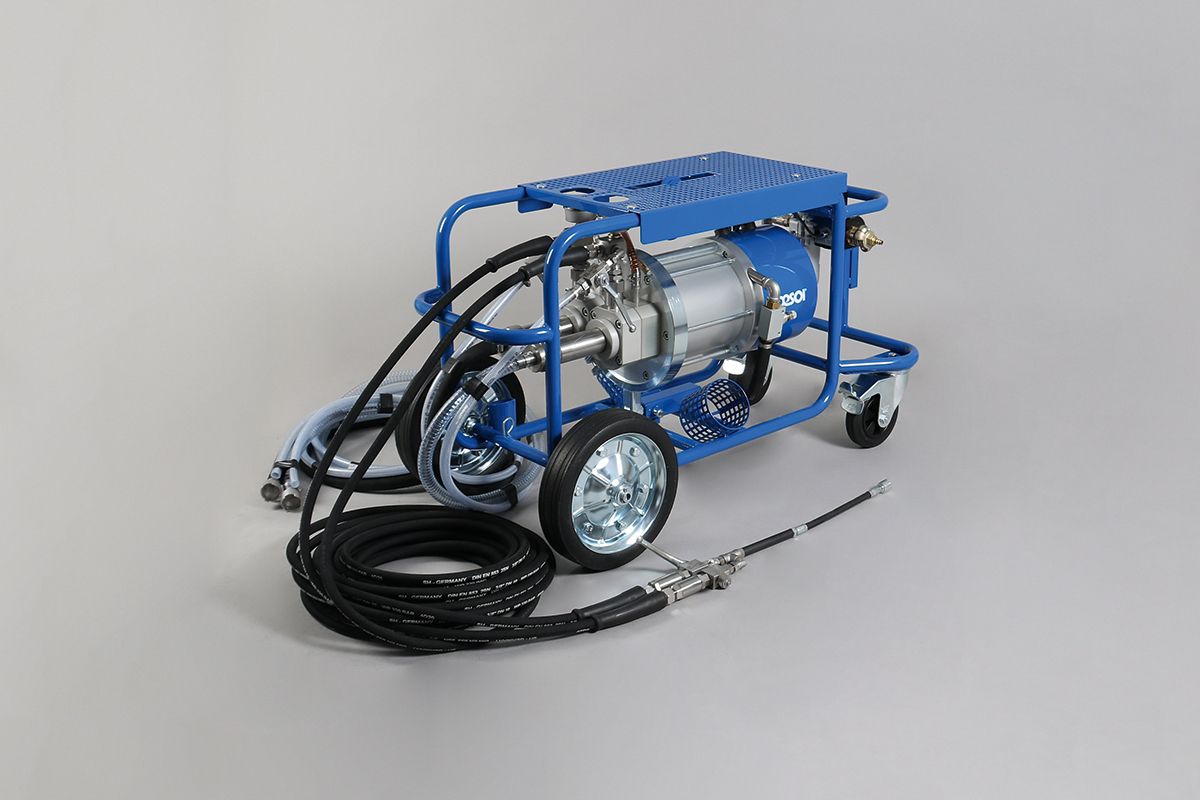

DESOI AirPower L36-2C VA
Set

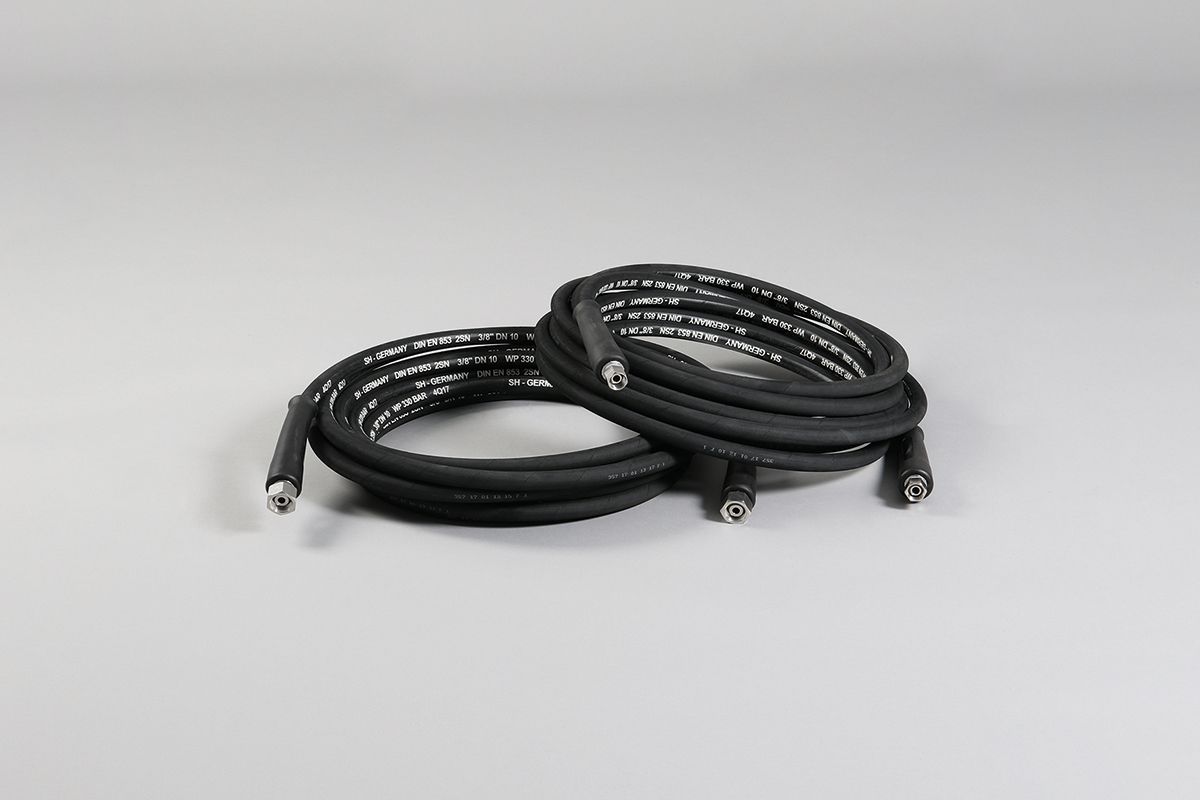

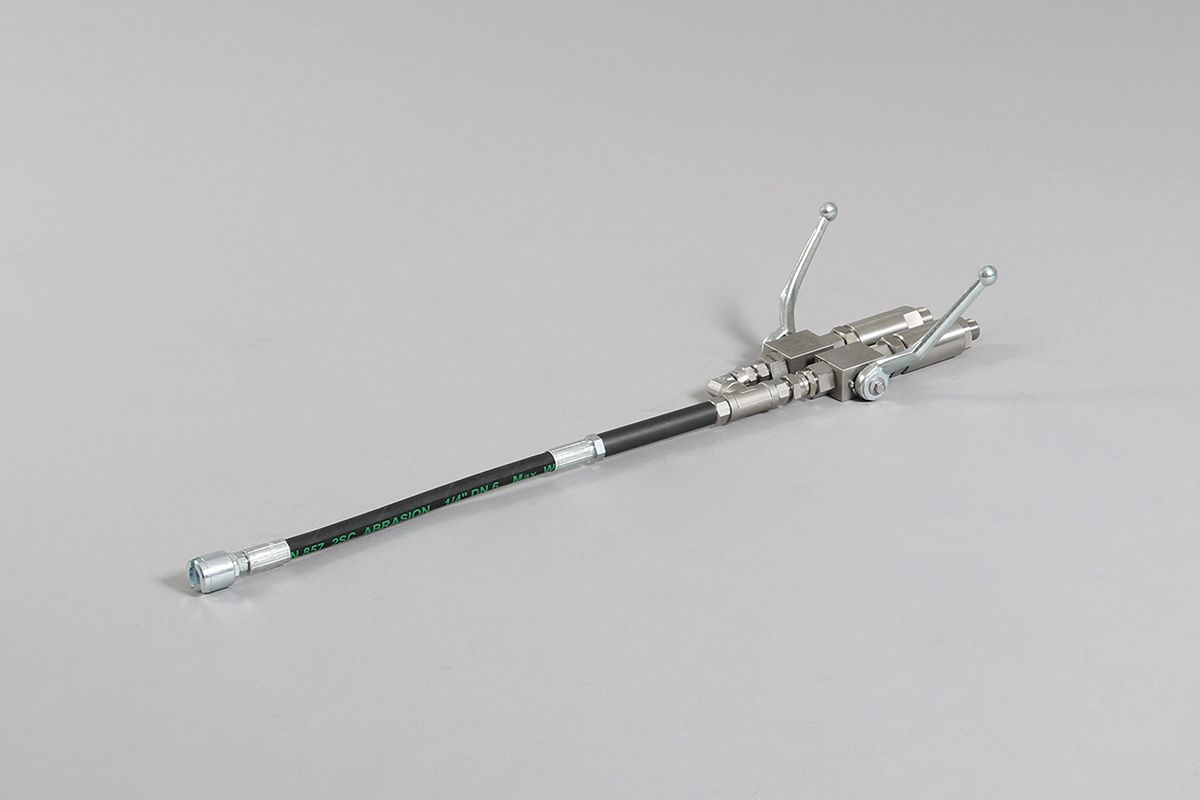

moving device, 3 m suction system Ø 20 mm with suction basket Ø 40 mm: component A: transparent, component B: black, 2 x manometer 0 - 400 bar, material hose connection: component A: external thread G1/2", component B: external thread G3/8", return hoses Ø 13 mm, transparent, air connection package: claw coupling 42 mm, air plug NW 7.2; incl. instruction manual, No. 16876: HP hose - stainless steel Ø 10 mm, 10 m, union nuts G1/2" (solvent resistant, component A), No. 16875: HP hose - stainless steel Ø 10 mm, union nuts G3/8" (solvent resistant, component B), No. 17815-12: 2C mixing head - stainless steel (2 x HP ball valve, 2 x check valve stainless steel, mixing tube with 12 x inline static mixer, whip 0.3 m long, sliding coupling with free passage Ø 2.5 mm, component B: external thread G3/8")
Voordeel/aanwijzing

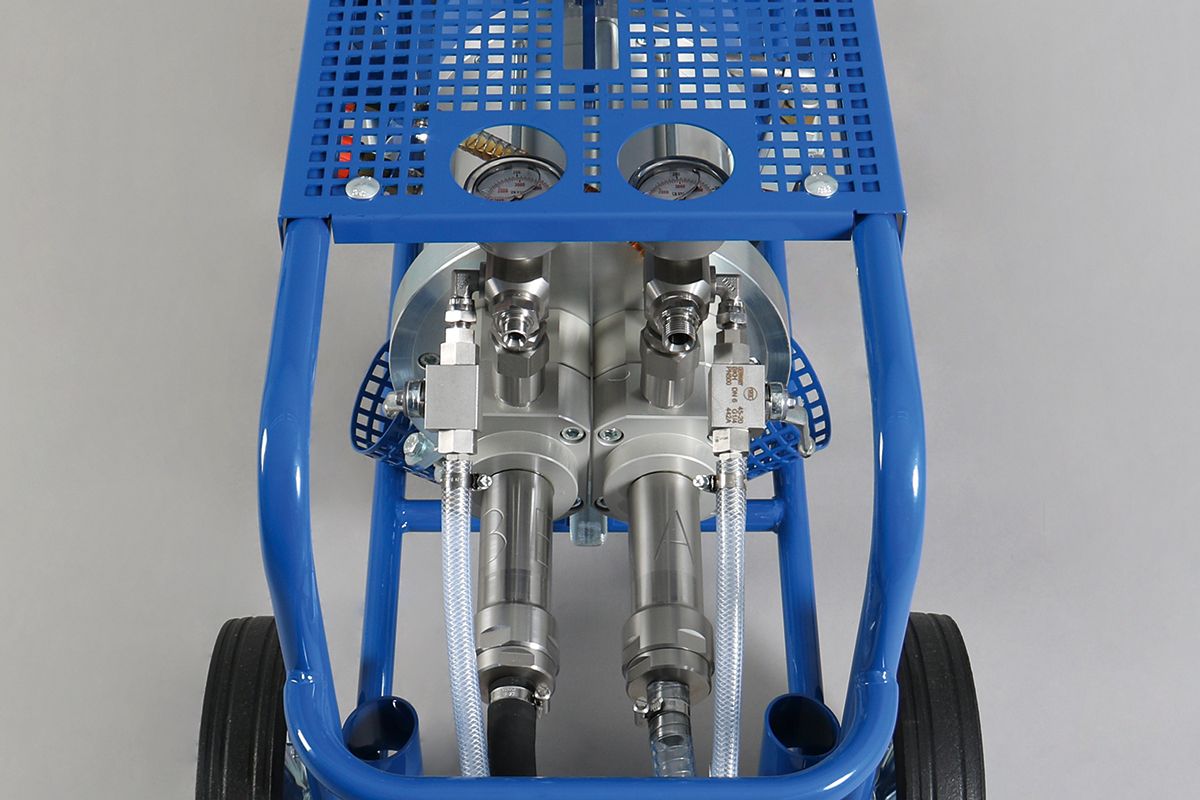

  • Manometers at machine outlet for pressure control of each components
  • Big material passages - for highly viscous material
  • Adjustment of the material volume
Invoermateriaal
  • 2C injection resin
Technische gegevens
Working pressure - infinitely variable 5 - 200 bar
Delivery rate max. 20 l/min
Air consumption 2.5 m³/min
Transmission ratio 1 : 25
Mixing ratio 1 : 1
Air pressure max. 8 bar
Weight 92 kg
L x W x H 110 x 55 x 65 cm
Productbeschrijving
The reciprocating pump DESOI AirPower L36-2C VA achieves a delivery of max. 20 l/min at a mixing ratio of 1 : 1. Due to the big valves and pistons also highly viscous material can be used without any problems. The result is a very maintenance-friendly machine including suitable accessories.
