HomepaginaDESOI AirPower 1CR
10782_DESOI AirPower 1 CR_M.jpg
10782_DESOI AirPower 1 CR_M.jpg 10782_DESOI AirPower 1 CR_Druckminderer.jpg

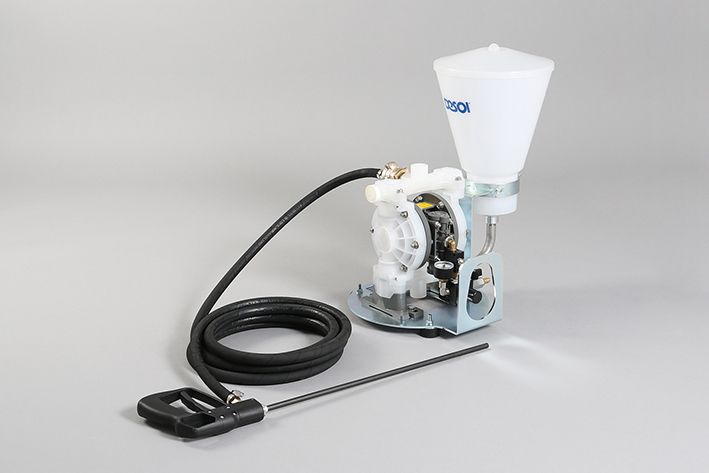

DESOI AirPower 1CR

6 l material container transparent with scale and cover, manometer 0 - 10 bar, incl. instruction manual, No. 500-07-374: Material hose (Ø 12 mm, 5 m long, connection G1/4" on claw coupling), No. 500-07-723: Gun with filling lance (Ø 10 x 500 mm)
Voordeel/aanwijzing
  • Preset pressure
  • Direct suction from the material container
  • High suction power - no loss of material
  • Immediately ready for use
  • Big material passages
  • Easy operation and cleaning
Invoermateriaal
  • injection creme
Technische gegevens
Working pressure 1 - 8 bar
Delivery 20 l/min
Air consumption min. 100 l/min
Transmisssion ratio 1:1
Air pressure max. 8 bar
Weight 11 kg
L x W x H 55 x 35 x 57 cm
Productbeschrijving
The compact membrane pump DESOI AirPower 1CR was specially developed for the moisture barrier system. The ready-mixed cream is sucked out of the 6 l material container by a suction system. The operating pressure is preset to 5 bar.
