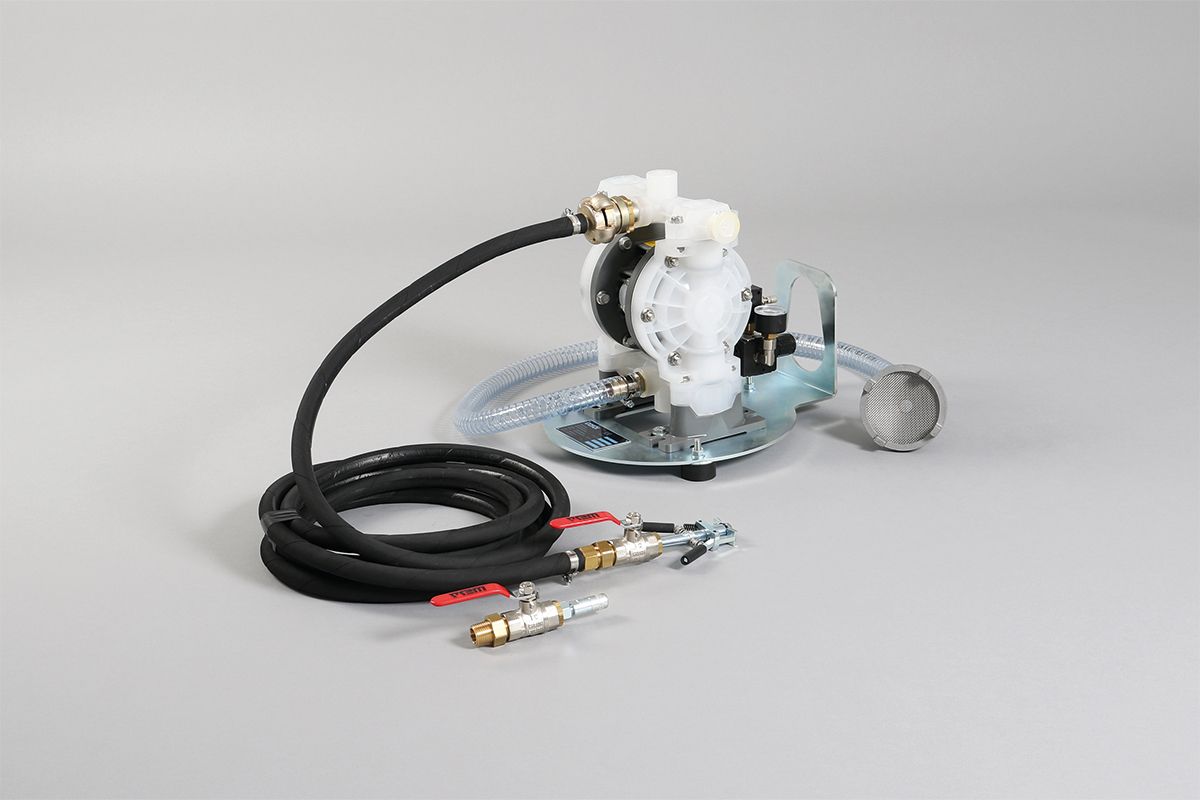

DESOI AirPower 1

suction system, pressure reducer, incl. instruction manual, No. 10695: Material hose (Ø 13 mm, 5 m long; detachable double nipple R1/2" and claw coupling LW13), No. 10920: Quick snap (LP ball valve R1/2", max. 40 bar, free passage Ø 9 mm; detachable double nipple R1/2"), No. 21232: LP ball valve R1/2" (max. 40 bar, mouth piece; detachable double nipple R1/2")
Voordeel/aanwijzing
  • Easy operation and cleaning
  • Big material passages - high delivery
  • Compact design
  • Exact pressure adjustment
Invoermateriaal
  • aqueous solution
  • injection mortar
  • cement paste
  • cement suspension
  • wood perservative
Technische gegevens
Working pressure - infinitely variable 1 - 8 bar
Delivery rate max. 20 l/min
Air consumption min. 100 l/min
Transmission ratio 1 : 1
Air pressure max. 8 bar
Grain size max. 0.5 mm
Weight 10 kg
L x W x H 37 x 30 x 32 cm
Productbeschrijving

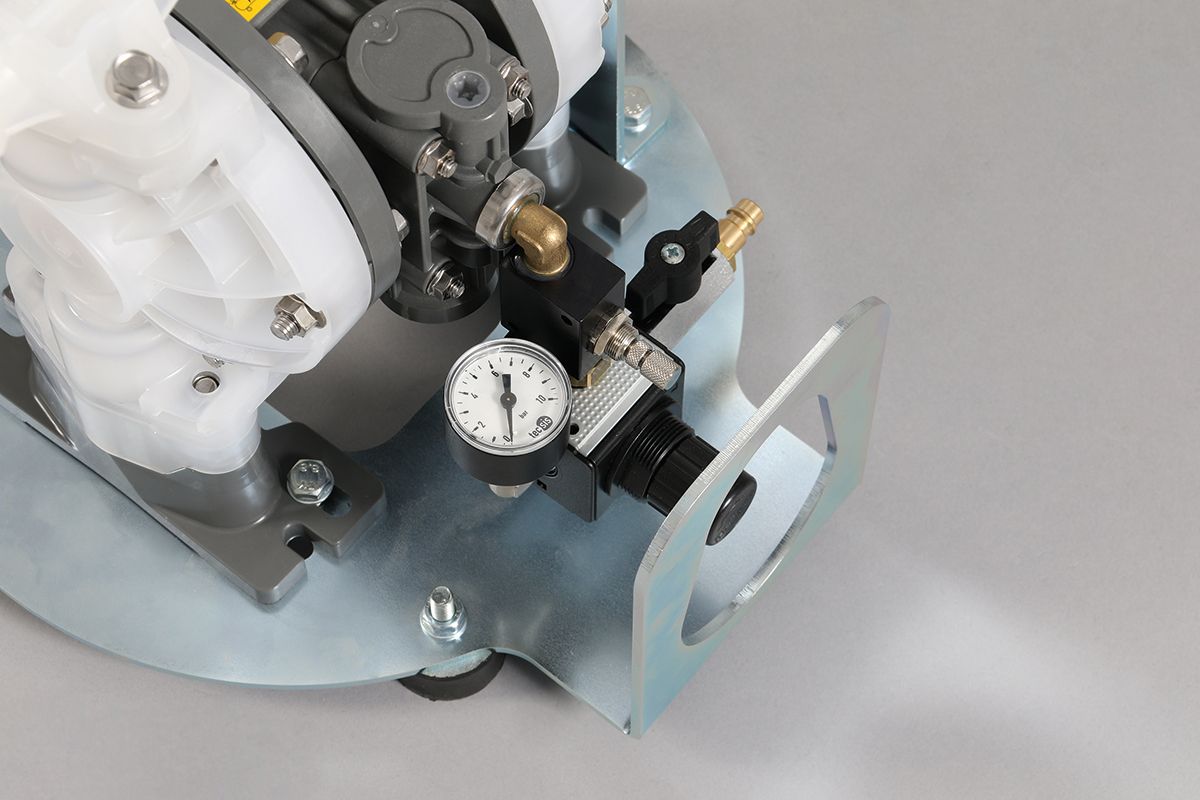

The compact pneumatic double membrane pump DESOI AirPower 1 is suitable for works with high demand on the flow rate in the low pressure range. The delivery pressure is set by the pressure reducer.
